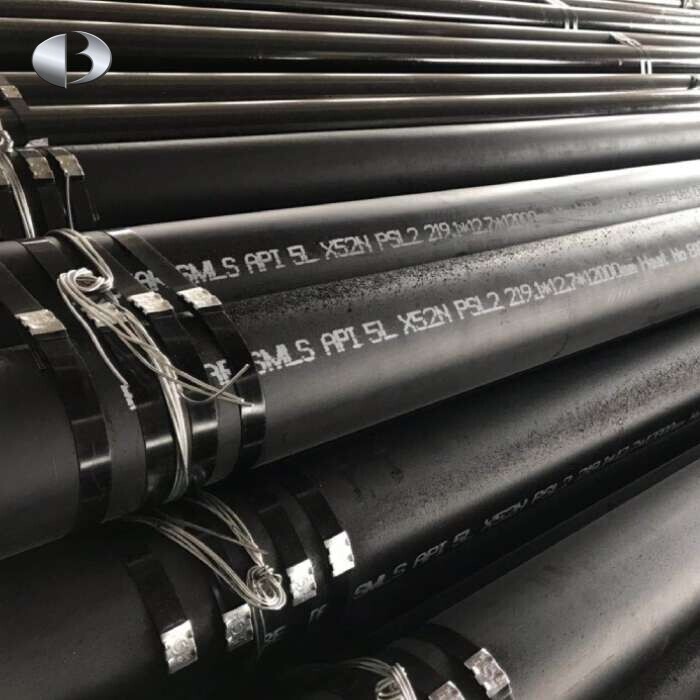

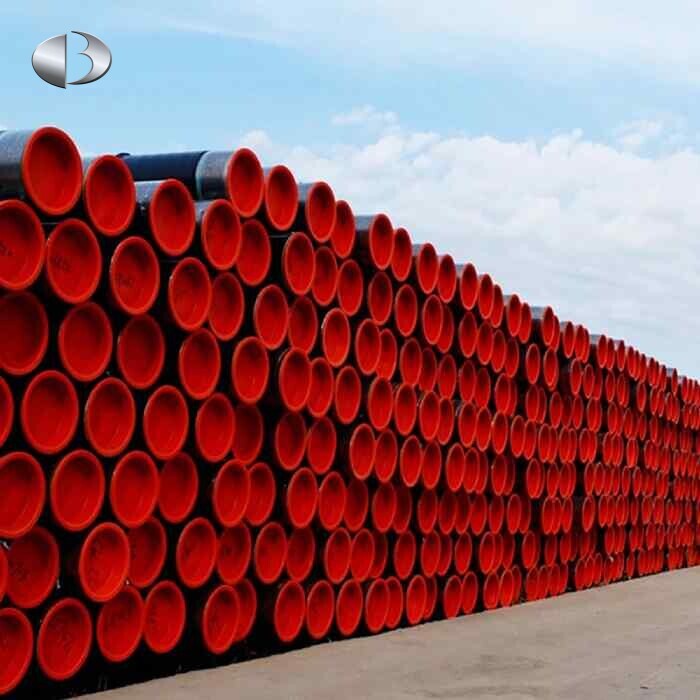

API 5L Line Pipe

ANSI/API 5L specifies the manufacture of seamless and welded steel pipes in two product classes (PSL1 and PSL2) for pipelines used in oil and gas transportation. API 5L pipes are carbon steel pipes used in oil and gas delivery systems. At the same time, other fluids such as steam, water, and slurry can also be transmitted using API 5L standards.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

Product Parameters

Product Display

Application

Package

Product	Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe
Application	For Transportation in petroleum and natural gas industries
Size	OD: 73-630mm
	WT: 6-35mm
	LENGTH: 5.8/6/11.8/12m
Pipe Standard	API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
Pipe Standard	API 5L PSL1/PSL2 L210,L245,L290,L320,L360,L390,L415,L450,L485

API 5L Line Pipe Specification

API 5L Pipe Grades	API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2
API 5L Pipe Type	Seamless
API 5L Pipe Outer Diameter Size	3/8" NB To 30" NB (Nominal Bore Size)
API 5L Pipe Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
API 5L Pipe Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
API 5L Pipe Ends	Plain Ends / Beveled Ends / Coupling
API 5L Pipe Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
API 5L Pipe Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc.
API 5L Pipe Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.

Type: API 5L seamless pipe, API 5L welded pipe
Specifications: Outer diameter: 1/2-40 inches.
WT: SCH 10, SCH 20, SCH 40, SCH STD, SCH 80, SCH XS to SCH 160.
L: SRL, DRL, 20 feet (6 m), 40 feet (12 m) or custom.
Standards: API 5L PSL1, PSL2, onshore and offshore Acidification services.
Class: API 5L Class B, X42, X52, X56, X60, X65, X70, X80.
End: inclined end, flat end.
Surface: Natural, varnish, black paint, FBE, 3PE (3LPE), 3PP, CWC (Concrete Recoating), CRA coated or lined.

API 5L Line Pipe Standard

Standard	Grade	Chemical Components (%)					Mechanical Properties
		C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
		C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
API 5L PSL1	A	0.22	-	0.9	0.03	0.03	≥331	≥207
	B	0.28	-	1.2	0.03	0.03	≥414	≥241
	X42	0.28	-	1.3	0.03	0.03	≥414	≥290
	X46	0.28	-	1.4	0.03	0.03	≥434	≥317
	X52	0.28	-	1.4	0.03	0.03	≥455	≥359
	X56	0.28	-	1.4	0.03	0.03	≥490	≥386
	X60	0.28	-	1.4	0.03	0.03	≥517	≥448
	X65	0.28	-	1.4	0.03	0.03	≥531	≥448
	X70	0.28	-	1.4	0.03	0.03	≥565	≥483
API 5L PSL2	B	0.24	-	1.2	0.025	0.015	≥414	≥241
	X42	0.24	-	1.3	0.025	0.015	≥414	≥290
	X46	0.24	-	1.4	0.025	0.015	≥434	≥317
	X52	0.24	-	1.4	0.025	0.015	≥455	≥359
	X56	0.24	-	1.4	0.025	0.015	≥490	≥386
	X60	0.24	-	1.4	0.025	0.015	≥517	≥414
	X65	0.24	-	1.4	0.025	0.015	≥531	≥448
	X70	0.24	-	1.4	0.025	0.015	≥565	≥483
	X80	0.24	-	1.4	0.025	0.015	≥621	≥552
