Name: Angle Steel
SKU: 0

Products

LOCATION : Home > Products > Galvanized > Galvanized Profile > Angle Steel

Products

Message

Recommend

Q235/S235JR Carbon Steel Plate
The Q235/S235JR Carbon Steel Plate has excellent strength and plasticity and is suitable for a variety of engineering fields, including construction, Bridges, machinery, vehicles, ships and pressure vessels. It is easy to cut, bend and weld, which gives it an advantage in improving production efficiency and reducing production costs.
Stainless Steel Sheet
Stainless steel plate surface smooth, high plasticity, toughness and mechanical strength, acid, alkaline gas, solution and other media corrosion. It is a kind of alloy steel that is not easy to rust, but it is not absolutely rust free. Stainless steel plate refers to the air, steam and water and other weak medium corrosion steel plate, and acid resistance steel plate is acid, alkali, salt and other chemical corrosion medium corrosion steel plate. Stainless steel plate since the beginning of the 20th century, has a history of more than 1 century.

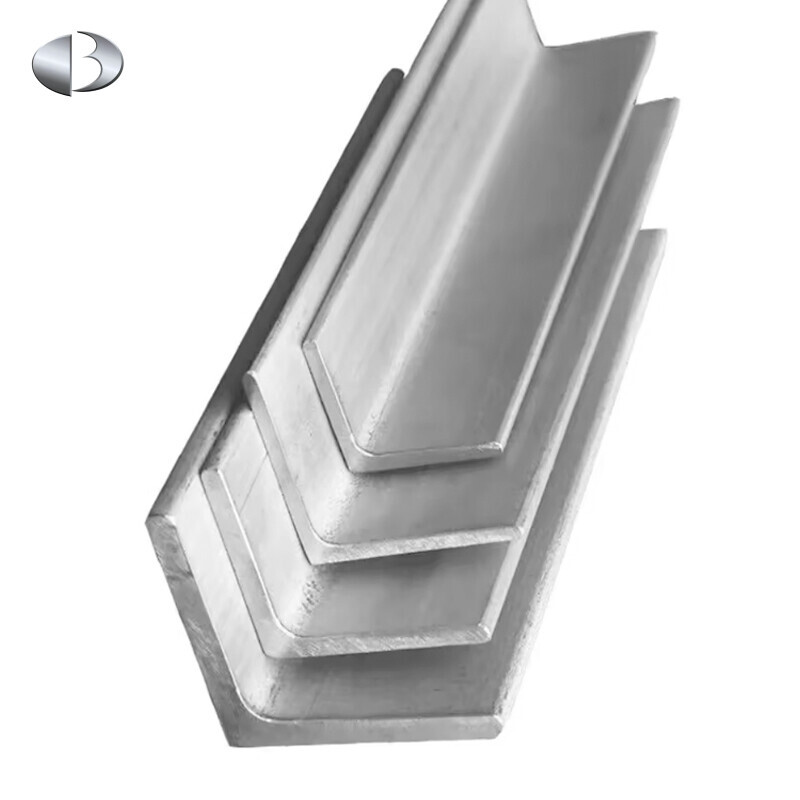

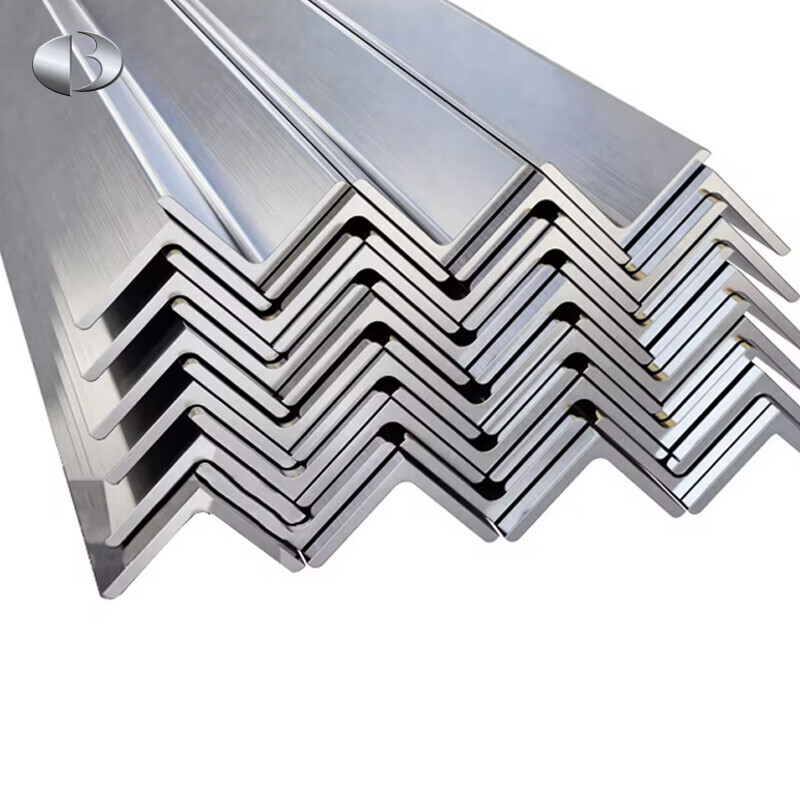

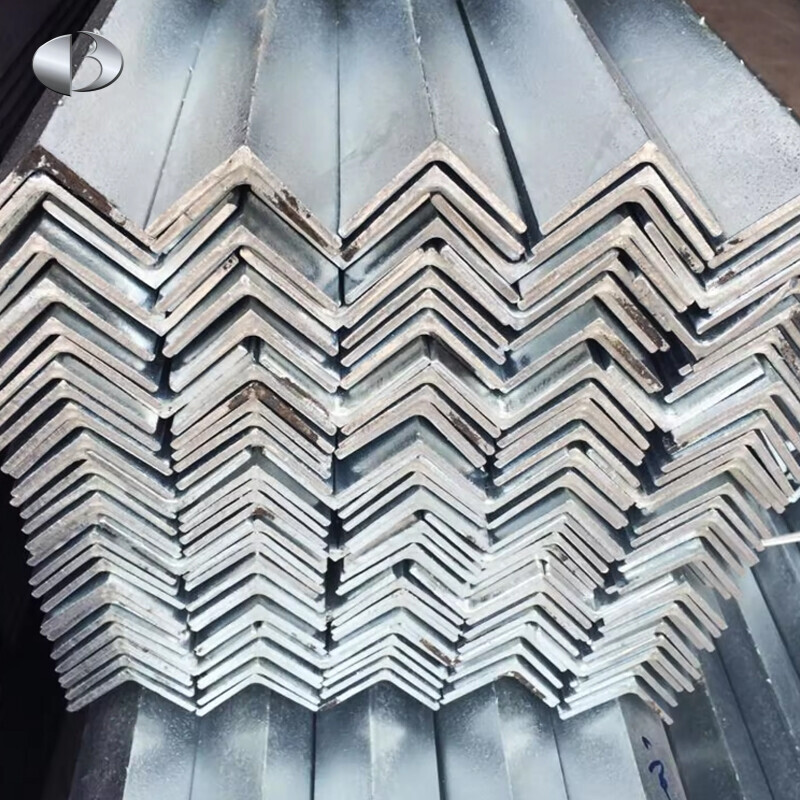

Angle Steel

Galvanized angle steel is divided into hot-dip galvanized angle steel and cold-dip galvanized angle steel. Hot dip galvanized angle steel is also known as hot-dip galvanized angle steel or hot-dip galvanized angle steel. Cold dip galvanized coatings mainly ensure sufficient contact between zinc powder and steel through electrochemical principles, generating electrode potential differences for corrosion prevention.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

Product Parameters

Product Display

Application

Package

Material	A36, ST3, S235J0, S235J2, St52, 16mn, S355JOQ195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400BA572, GR50, GR60, SS540
Thickness	1-30mm
Width	15-400mm
Length	6m, 9m, 12m or as customer requirement
Technology	Hot rolled, welded
Standard	ASTM，AISI，JIS，GB， DIN，EN
Surface	Galvanized, paint；or as your request
Certification	ISO, SGS, BV
Application	widely used in building structure and engineering construction, such as room beam,ship beam, industrial furnace, etc.

Stainless Steel Chemical Composition

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤0.03	3.5 -5.5	16 .0 -18.0	-
202	≤0 .15	≤l.0	7.5-10.0	≤0.06	≤0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤l.0	≤2.0	≤0.045	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	19.0-22.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤0.03	12.0 - 15.0	16 .0 -1 8.0	2.0 -
321	≤0 .08	≤1.0	≤2.0	≤0.035	≤0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤0 .07	≤1.0	≤1.0	≤0.035	≤0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤0.040	≤0.03	≤0.60	16.0 -18.0	-

Carbon Steel Chemical Composition

Grade	C	Si	Mn	P	S	Cr	Ni	Cu	As	N
Q195	≤0.12	≤0.3	≤0.5	≤0.035	≤0.04	≤0.3	≤0.3	≤0.3	≤0.08	≤0.008
Q235A	≤0.22	≤0.35	≤1.4	≤0.045	≤0.05	≤0.3	≤0.3	≤0.3	≤0.08	≤0.008
Q235B	≤0.2	≤0.35	≤1.4	≤0.045	≤0.045	≤0.3	≤0.3	≤0.3	≤0.08	≤0.008
Q235C	≤0.17	≤0.35	≤1.4	≤0.04	≤0.04	≤0.3	≤0.3	≤0.3	≤0.08	≤0.008
SS330	-	-	-	≤0.05	≤0.05	-	-	-	-	-
SS400	-	-	-	≤0.05	≤0.05	-	-	-	-	-
SS490	-	-	-	≤0.05	≤0.05	-	-	-	-	-
1008	≤0.1	-	0.3-0.5	≤0.04	≤0.05	-	-	≥0.002	-	-
1010	0.08-0.13	0.3-0.6	-	≤0.04	≤0.05	-	-	≥0.002	-	-
1015	0.13-0.18	-	0.3-0.6	≤0.04	≤0.05	-	-	≥0.002	-	-
1020	0.08-0.23	-	0.3-0.6	≤0.04	≤0.05	-	-	≥0.002	-	-
1021	0.18-0.23	-	0.6-0.9	≤0.04	≤0.05	-	-	≥0.002	-	-
1025	0.22-0.28	-	0.3-0.6	≤0.04	≤0.05	-	-	≥0.002	-	-
1030	0.28-0.34	-	0.6-0.9	≤0.04	≤0.05	-	-	≥0.002	-	-
55#	0.52-0.6	0.17-0.37	0.5-0.8	≤0.035	≤0.035	≤0.25	≤0.3	≤0.25	-	-
60#	0.57-0.65	0.17-0.37	0.5-0.8	≤0.035	≤0.035	≤0.25	≤0.3	≤0.25	-	-
70#	0.67-0.75	0.17-0.37	0.5-0.8	≤0.035	≤0.035	≤0.25	≤0.3	≤0.25	-	-
75#	0.72-0.8	0.17-0.37	0.5-0.8	≤0.035	≤0.035	≤0.25	≤0.3	≤0.25	-	-
85#	0.82-0.9	0.17-0.37	0.5-0.8	≤0.035	≤0.035	≤0.25	≤0.3	≤0.25	-	-

Introduction

Factory Display

Certificate Display

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
