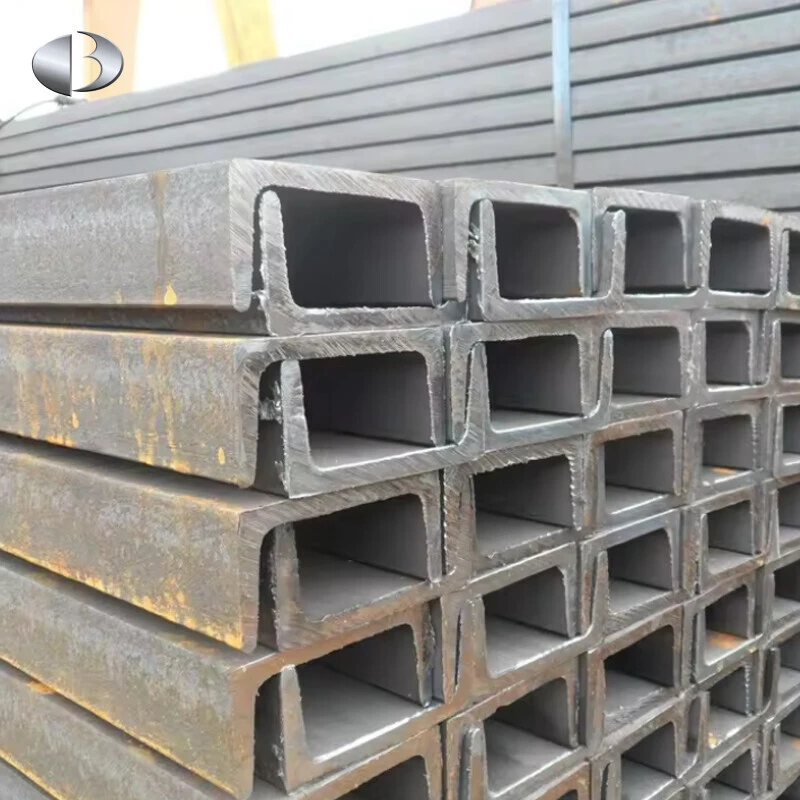

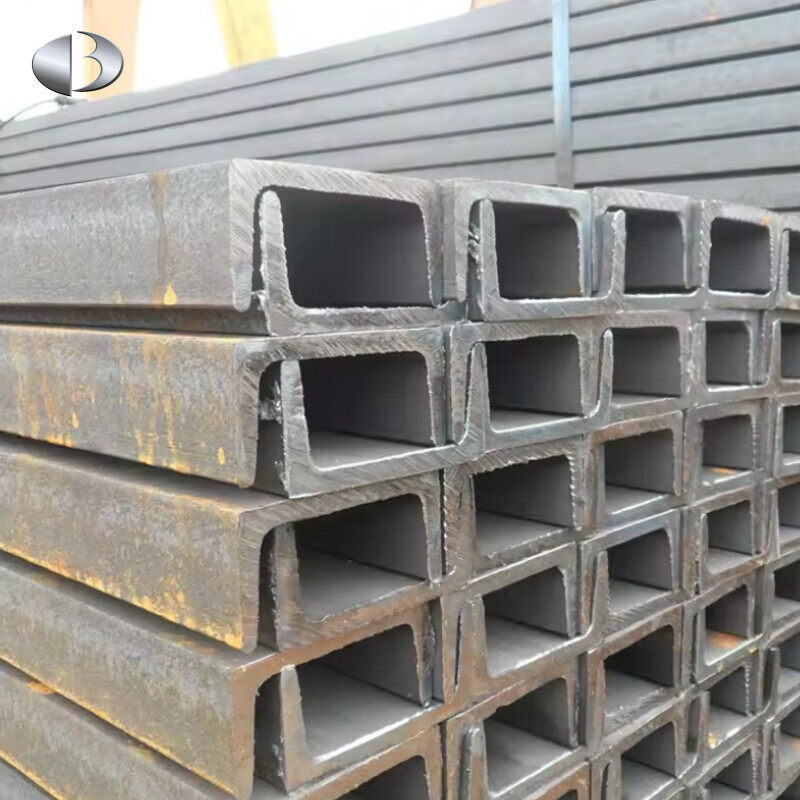

Channel Steel

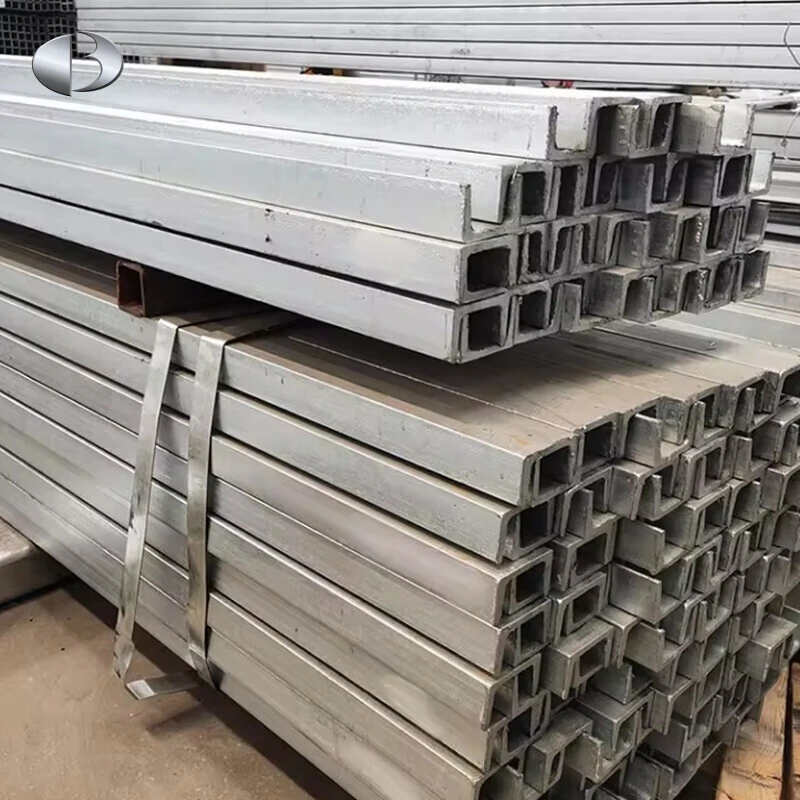

Galvanized channel steel is an effective metal anti-corrosion method, mainly used on metal structural facilities in various industries. Hot dip galvanized channel steel can be divided into hot-dip galvanized channel steel and hot-blown galvanized channel steel according to different galvanizing processes. It is a process of immersing rust removed steel components in a molten zinc solution at around 440-460 ℃ to attach a zinc layer to the surface of the steel components, thereby achieving the purpose of corrosion prevention.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

Product Parameters

Product Display

Application

Package

Product Name	Channel Steel
Thickness	1.5mm-25mm
Length	6-12m or according to customer's special request
Height	80-160mm
Tolerance	Thickness: +/-0.02mm, height:+/-2mm
Technical	Hot / Cold rolled
Standard	AISI,ASTM,DIN,JIS,BS,GB/T,etc.
Processing Way	Hot-rolled and High frequency welded
Packing	tied up with steel strips and wrapped with water proof paper
Advantages	1. Reasonable price with excellent quality
	2. Abundant stock and prompt delivery
	3. Rich supply and export experience, sincere service

Standard

AISI, ASTM, DIN, JIS, BS, GB/T, etc.

Standard cross-section					Cross-sectional	Unit mass
dimensions（mm）					area(cm3）	(kg/m)
H×B	t1	t2	r1	r2
150×125	8.5	14	13	6.5	46.15	36.2
180×100	6	10	10	5	30.06	23.6
200×100	7	10	10	5	33.06	26
200×150	9	16	15	7.5	64.16	50.4
250×125	7.5	12.5	12	6	48.79	38.3
250×125	10	19	21	10.5	70.73	55.5
300×150	8	13	12	6	61.58	48.3
300×150	10	18.5	19	9.5	83.47	65.5
300×150	11.5	22	23	11.5	97.88	76.8
350×150	9	15	13	6.5	74.58	58.5
350×150	12	24	25	12.5	111.1	87.2
400×150	10	18	17	8.5	91.73	72
400×150	12.5	25	27	13.5	122.1	95.8
450×175	11	20	19	9.5	116.8	91.7
450×175	13	26	27	13.5	146.1	115
600×190	13	25	25	12.5	169.4	133
600×190	16	35	38	19	224.5	176

Reference
Second moment		Radius of gyration		Section
of area（cm4）		of area（cm）		modulus （cm3）
lx	ly	ix	iy	zx	zy
1,760	385	6.18	2.89	235	61.6
1,670	138	7.45	2.14	186	27.5
2,170	138	8.11	2.05	217	27.7
4,460	753	8.34	3.43	446	100
5,180	337	10.3	2.63	414	53.9
7,310	538	10.2	2.76	585	86
9,480	588	12.4	3.09	632	78.4
12,700	886	12.3	3.26	849	118
14,700	1,080	12.2	3.32	978	143
15,200	702	14.3	3.07	870	93.5
22,400	1,180	14.2	3.26	1,280	158
24,100	864	16.2	3.07	1,200	115
31,700	1,240	16.1	3.18	1,580	165
39,200	1,510	18.3	3.6	1,740	173
48,800	2,020	18.3	3.72	2,170	231
98,400	2,460	24.1	3.81	3,280	259
130,000	3,540	24.1	3.97	4,330	373

Introduction

Factory Display

Certificate Display

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
